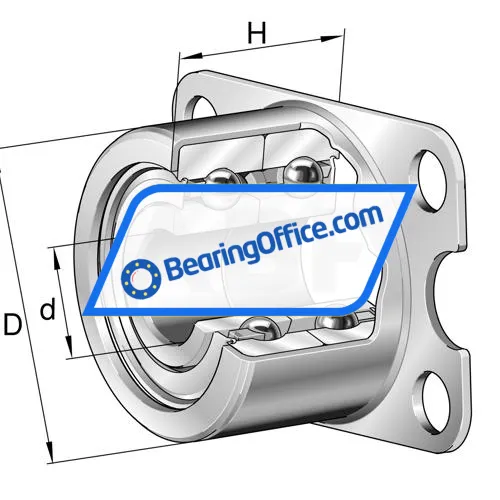

INA ZKLR0828-2Z Image 5
Visual product photo and picture of the product.
Price: 144.49 $
Specifications
Weight and Dimensions
| Inner (d) MM |
8 |
| Outer (D) MM |
23,9 |
| Width (B) MM |
15,5 |
| Inner (d) Inch |
0.315 |
| Outer (D) Inch |
0.9409 |
| Width (B) Inch |
0.6102 |
| Weight (kg) |
0.03 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
ZZ/2Z - Steel Seal on Two Sides |
| Cage Type |
S - Steel or Standard Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Lubrication |
Standard Lubrication |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Split Inner ring / Outer ring |
Split inner ring |
Data from Schaeffler (medias)
| Outside diameter bearing pot (D) mm |
23,9 |
| Radial Static Load Rating C0r (N) |
2700 |
| Width inner ring (B) mm |
14 |
| Radial Dynamic Load Rating Cr (N) |
5000 |
| Axial Static Load Rating C0a (N) |
1850 |
| Axial Dynamic Load Rating Ca (N) |
2060 |
| ECLASS number |
23-05-16-02 |
| ECLASS2 number |
23-05-16-02 |
| Medias description |
Angular contact ball bearing units ZKLR..-2Z, double direction, for screw mounting, gap seals on both sides |
Suffix description
| 2Z |
Gap Seals At Both Sides Of The Bearing |
