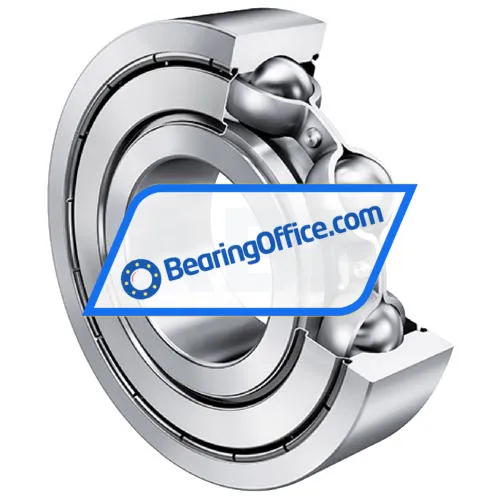

FAG 6304-2Z-L207-C3 Image 4
Visual product photo and picture of the product.
Price: 14.03 $
Specifications
Weight and Dimensions
| Inner (d) MM |
20 |
| Outer (D) MM |
52 |
| Width (B) MM |
15 |
| Inner (d) Inch |
0.7874 |
| Outer (D) Inch |
2.0472 |
| Width (B) Inch |
0.5906 |
| Weight (kg) |
0.146 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
ZZ/2Z - Steel Seal on Two Sides |
| Cage Type |
S - Steel or Standard Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Standard Precision |
| Lubrication |
2 - High Temperature Grease |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Special Treatment |
No Special Treatment |
Data from Schaeffler (medias)
| Radial Static Load Rating C0r (N) |
7900 |
| Radial Dynamic Load Rating Cr (N) |
16900 |
| ECLASS number |
23-05-08-01 |
| ECLASS2 number |
23-05-08-01 |
| Medias description |
Deep groove ball bearing 63..-2Z, single row, cf. DIN 625-1 |
Suffix description
| 2Z |
Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal) |
| L207 |
Grease Filling With Arcanol L207 (High Temperature Grease) |
| C3 |
Internal Clearance Larger Than Normal |
