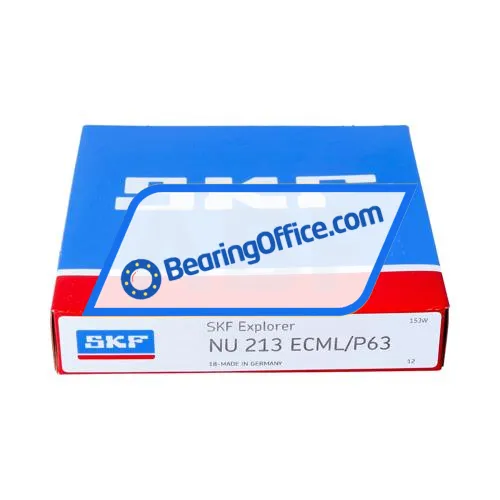

SKF NU213ECML/P63 Image 4
Visual product photo and picture of the product.
Price: 210.72 $
Specifications
Weight and Dimensions
| Inner (d) MM |
65 |
| Outer (D) MM |
120 |
| Width (B) MM |
23 |
| Inner (d) Inch |
2.5591 |
| Outer (D) Inch |
4.7244 |
| Width (B) Inch |
0.9055 |
| Weight (kg) |
1.17 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
No Seal |
| Cage Type |
ML - Brass Cage Inner/Outer Ring Centered |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
P6 Precision (Higher than Standard) |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
Suffix description
| EC |
Optimized Internal Design Incorporating More And/Or Larger Rollers And With Modified Roller/End Flange Contact |
| ML |
One-Piece Form-Turned Window-Type Brass Cage, Inner Or Outer Ring Centered |
| P63 |
Combination Of P6 (Dimensional And Running Accuracy To ISO Tolerance Class 6 (Better Than Normal)) And C3 (Internal Clearance Larger Than Normal) |
