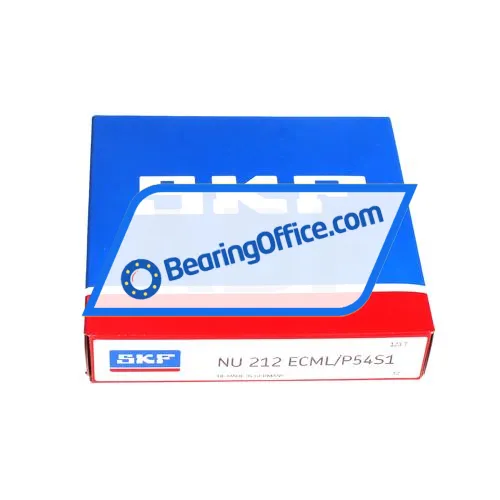

SKF NU212ECML/P54S1 Image 4
Visual product photo and picture of the product.
Price: 236.79 $
Specifications
Weight and Dimensions
| Inner (d) MM |
60 |
| Outer (D) MM |
110 |
| Width (B) MM |
22 |
| Inner (d) Inch |
2.3622 |
| Outer (D) Inch |
4.3307 |
| Width (B) Inch |
0.8661 |
| Weight (kg) |
0.9 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
No Seal |
| Cage Type |
ML - Brass Cage Inner/Outer Ring Centered |
| External Modification |
No External Modification |
| Radial Internal Play |
C4 Internal Play (Higher than C3) |
| Precision |
P5 Precision (Higher than P6) |
| Heat Stabilization |
S1 - Temperatures up to 200 °C |
Suffix description
| EC |
Optimized Internal Design Incorporating More And/Or Larger Rollers And With Modified Roller/End Flange Contact |
| ML |
One-Piece Form-Turned Window-Type Brass Cage, Inner Or Outer Ring Centered |
| P54 |
Combination of P5 (Dimensional And Running Accuracy To ISO Tolerance Class 5 (Better Than P6)) And C4 (Bearing Internal Clearance Greater Than C3) |
| S1 |
Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +200°C (392°F) |
