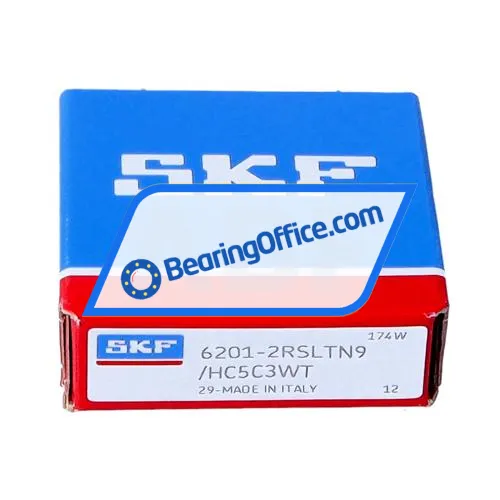

SKF 6201-2RSLTN9/HC5C3WT Image 3
Visual product photo and picture of the product.
Price: 88.11 $
Specifications
Weight and Dimensions
| Inner (d) MM |
12 |
| Outer (D) MM |
32 |
| Width (B) MM |
10 |
| Inner (d) Inch |
0.4724 |
| Outer (D) Inch |
1.2598 |
| Width (B) Inch |
0.3937 |
| Weight (kg) |
0.033 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
2RL - Low Friction NBR-seal |
| Cage Type |
P - Plastic Molded Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
H5 - Ceramic Ball Set |
| Lubrication |
2 - High Temperature Grease |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Special Treatment |
No Special Treatment |
Suffix description
| 2RSL |
Sheet Steel Reinforced Low Friction Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing |
| TN9 |
Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered |
| HC5 |
Rolling Elements Of Silicon Nitride |
| C3 |
Internal Clearance Larger Than Normal |
| WT |
Grease Fill For Low As Well As High Temperature e.g. Range -40 ~ 160°C. WT Or A Two-Figure Number Following WT Identifies The Actual Grease. An Additional Letter Or Letter/ Figure Combination As Mentioned Under u201cHTu201d Identifies Filling Degrees Other Than Standard |
