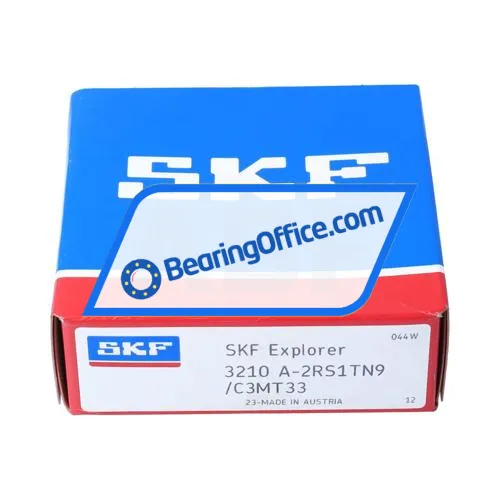

SKF 3210A-2RS1TN9/C3MT33 Image 3
Visual product photo and picture of the product.
Price: 82.76 $
Specifications
Weight and Dimensions
| Inner (d) MM |
50 |
| Outer (D) MM |
90 |
| Width (B) MM |
30,2 |
| Inner (d) Inch |
1.9685 |
| Outer (D) Inch |
3.5433 |
| Width (B) Inch |
1.189 |
| Weight (kg) |
0.673 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
2RS - Rubber Seal on Two Sides |
| Cage Type |
P - Plastic Molded Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Standard Precision |
| Lubrication |
M - Grease with Lithium Thickener |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Split Inner ring / Outer ring |
Standard |
Suffix description
| A |
Double Row Angular Contact Ball Bearing Without Filling Slots |
| 2RS1 |
Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing |
| TN9 |
Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered |
| C3 |
Internal Clearance Larger Than Normal |
| MT33 |
Lithium Grease, Medium Temp. 74 cSt @ 40°C, -30°C/+120°C, A Two-Figure Number Following MT Identifies The Actual Grease. An Additional Letter Or Letter/Figure Combination As Mentioned Under "HT" Identifies Filling Degrees Other Than Standard. Examples: MT33 Or MT37F9 |
