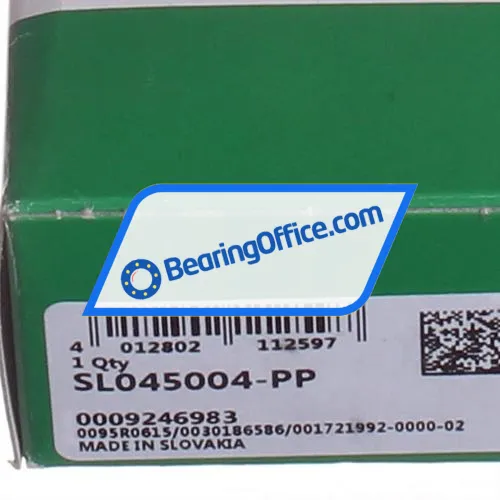

INA SL045004-PP Image 4
Visual product photo and picture of the product.
Price: 60.28 $
Specifications
Weight and Dimensions
| Inner (d) MM |
20 |
| Outer (D) MM |
42 |
| Width (B) MM |
30 |
| Inner (d) Inch |
0.7874 |
| Outer (D) Inch |
1.6535 |
| Width (B) Inch |
1.1811 |
| Weight (kg) |
0.188 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
2L - LS-seal at Both Sides |
| Cage Type |
FC - Full Complement, No Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
Data from Schaeffler (medias)
| Width (b) mm |
30 |
| Radial Static Load Rating C0r (N) |
51000 |
| Radial Dynamic Load Rating Cr (N) |
41500 |
| Basic static load rating, radial (C 0r) |
"51000.0000" |
| Limiting speed for grease lubrication (n G Grease) |
5500 |
| ECLASS number |
23-05-09-01 |
| ECLASS2 number |
23-05-09-01 |
| Medias description |
Cylindrical roller bearing SL04..-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04 |
Suffix description
| PP |
Lip Seals On Both Sides Of The Bearing |
