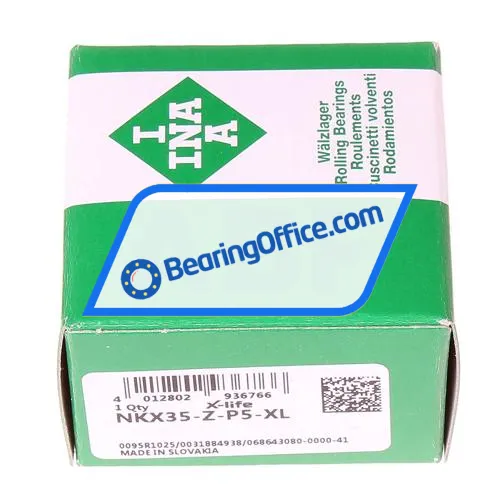

INA NKX35-Z-P5-XL Image 4

Visual product photo and picture of the product.

INA NKX35-Z-P5-XL bearing image 4
INA NKX35-Z-P5-XL bearing image 1
INA NKX35-Z-P5-XL bearing image 2
INA NKX35-Z-P5-XL bearing image 3
INA NKX35-Z-P5-XL bearing image 4
INA NKX35-Z-P5-XL bearing image 5
Price: 146.02 $
Specifications
Brand INA
Item Number NKX35-Z-P5-XL INA
Manufacturer Part Number 0686430800000
Also known as NKX35-Z-P5
EAN 4012802936766
Category Needle Roller and Cage Assembly
Weight and Dimensions
Inner (d) MM 35
Outer (D) MM 47
Width (B) MM 30
Inner (d) Inch 1.378
Outer (D) Inch 1.8504
Width (B) Inch 1.1811
Weight (kg) 0.163 kg
Product Properties
Seal No Seal
Data from Schaeffler (medias)
Basic dynamic load rating, axial (C a) 21200
Height (C) mm 30
Basic static load rating, axial (C 0a) 47000
Basic static load rating, radial (C 0r) 41500
Limiting speed (n G) 4600
ECLASS number 23-05-12-02
ECLASS2 number 23-05-12-02
Suffix description
Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
XL X-Life
