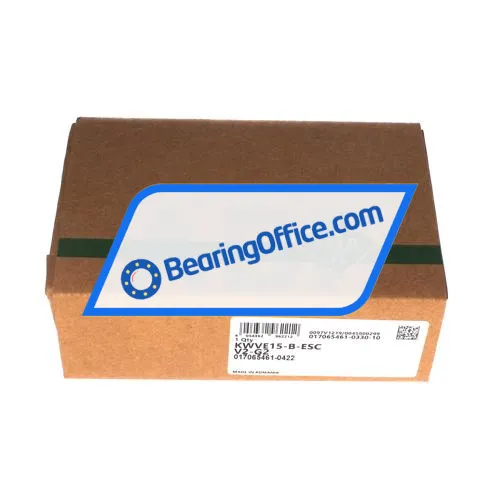

INA KWVE15-B-ESC-V2-G2 Image 4
Visual product photo and picture of the product.
Price: 70.99 $
Specifications
Weight and Dimensions
| Inner (d) MM |
15 |
| Outer (D) MM |
34 |
| Width (B) MM |
44,5 |
| Inner (d) Inch |
0.5906 |
| Outer (D) Inch |
1.3386 |
| Width (B) Inch |
1.752 |
| Weight (kg) |
0.12 kg
|
Product Properties
Data from Schaeffler (medias)
| Width carriage (B) mm |
34 |
| Overall length carriage (L) mm |
44,5 |
| Dynamic load rating (C) |
4900 |
| Static load rating (C 0) |
8300 |
| Static moment rating about X axis (M 0x) |
86 |
| Static moment rating about Y axis (M 0y) |
35 |
| Static moment rating about Z axis (M 0z) |
35 |
| ECLASS number |
23-30-04-90 |
| ECLASS2 number |
23-30-04-90 |
| Medias description |
Carriages KWVE..-B-ESC, narrow, short carriage, four-row, full complement ball set |
Suffix description
| B |
Version |
| ESC |
Expanded Design, Short, Narrow Carriage |
| V2 |
Preload Class 2 |
| G2 |
Precision Class 2 |
