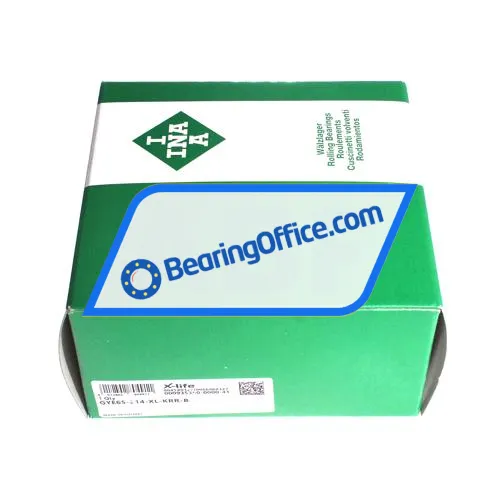

INA GYE65-214-XL-KRR-B Image 3
Visual product photo and picture of the product.
Price: 115.68 $
Specifications
Weight and Dimensions
| Inner (d) MM |
65 |
| Outer (D) MM |
125 |
| Width (B) MM |
74,6 |
| Inner (d) Inch |
2.5591 |
| Outer (D) Inch |
4.9213 |
| Width (B) Inch |
2.937 |
| Weight (kg) |
2.25 kg
|
Product Properties
| Seal |
2F - Standard Seal for Y-bearings |
| Lubrication |
Standard Lubrication |
| Special Treatment |
No Special Treatment |
Data from Schaeffler (medias)
| Outside diameter (D SP) mm |
125 |
| Width (b) mm |
74,6 |
| Radial Static Load Rating C0r (N) |
44000 |
| Radial Dynamic Load Rating Cr (N) |
66000 |
| Basic static load rating, radial (C 0r) |
"44000.0000" |
| ECLASS number |
23-05-08-02 |
| ECLASS2 number |
23-05-08-02 |
| Medias description |
Radial insert ball bearings GYE..-KRR-B, spherical outer ring, location by grub screws, R seals on both sides |
Suffix description
| XL |
X-Life |
| KRR |
Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder) |
| B |
Bearing With Spherical Outer Ring |
