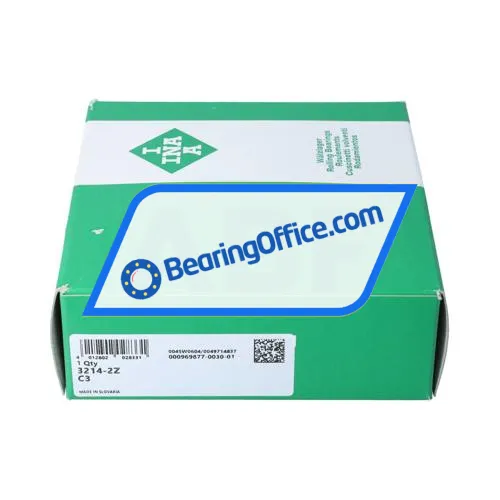

INA 3214-2Z-C3 Image 3
Visual product photo and picture of the product.
Price: 176.41 $
Specifications
Weight and Dimensions
| Inner (d) MM |
70 |
| Outer (D) MM |
125 |
| Width (B) MM |
39,7 |
| Inner (d) Inch |
2.7559 |
| Outer (D) Inch |
4.9213 |
| Width (B) Inch |
1.5625 |
| Weight (kg) |
1.78 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
ZZ/2Z - Steel Seal on Two Sides |
| Cage Type |
P - Plastic Molded Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Standard Precision |
| Lubrication |
Standard Lubrication |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Split Inner ring / Outer ring |
Standard |
Data from Schaeffler (medias)
| Radial Static Load Rating C0r (N) |
79000 |
| Radial Dynamic Load Rating Cr (N) |
82000 |
| ECLASS number |
23-05-08-03 |
| ECLASS2 number |
23-05-08-03 |
| Medias description |
Angular contact ball bearings 32..-B-2Z, main dimensions to DIN 628-3, double row, gap seals on both sides, contact angle a = 25° |
Suffix description
| 2Z |
Gap Seals At Both Sides Of The Bearing |
| C3 |
Internal Clearance Larger Than Normal |
