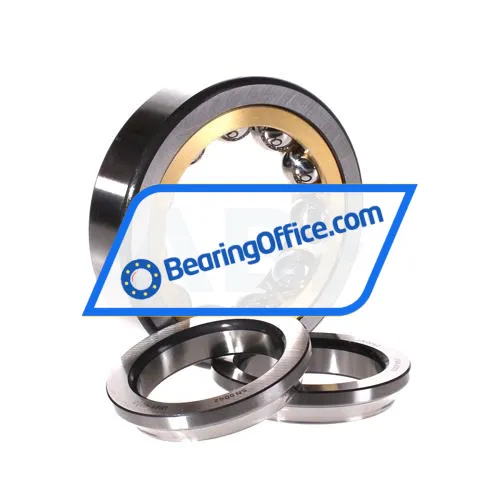

FAG QJ310-XL-MPA-C3 Image 2
Visual product photo and picture of the product.
Price: 131.89 $
Specifications
Weight and Dimensions
| Inner (d) MM |
50 |
| Outer (D) MM |
110 |
| Width (B) MM |
27 |
| Inner (d) Inch |
1.9685 |
| Outer (D) Inch |
4.3307 |
| Width (B) Inch |
1.063 |
| Weight (kg) |
1.386 kg
|
Product Properties
| Seal |
No Seal |
| Cage Type |
MA - Brass Cage, Centered on Outer Ring |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Standard Precision |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Split Inner ring / Outer ring |
Split inner ring |
Data from Schaeffler (medias)
| Width (b) mm |
27 |
| Radial Static Load Rating C0r (N) |
92000 |
| Radial Dynamic Load Rating Cr (N) |
115000 |
| Basic static load rating, radial (C 0r) |
"92000.0000" |
| Limiting speed (n G) |
12500 |
| Reference speed (n u03d1r) |
5400 |
| ECLASS number |
23-05-08-03 |
| ECLASS2 number |
23-05-08-03 |
| Medias description |
Four-point contact bearing QJ3..-XL-MPA, inner ring split |
Suffix description
| XL |
X-Life |
| MPA |
Solid Brass Cage |
| C3 |
Internal Clearance Larger Than Normal |
