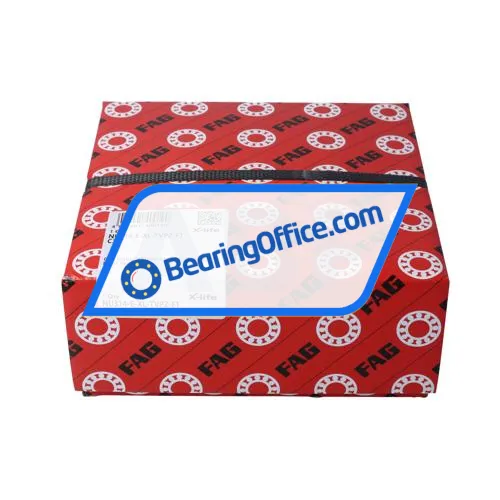

FAG NU314-E-XL-TVP2-F1-C3 Image 4
Visual product photo and picture of the product.
Price: 200.34 $
Specifications
Weight and Dimensions
| Inner (d) MM |
70 |
| Outer (D) MM |
150 |
| Width (B) MM |
35 |
| Inner (d) Inch |
2.7559 |
| Outer (D) Inch |
5.9055 |
| Width (B) Inch |
1.378 |
| Weight (kg) |
2.78 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
No Seal |
| Cage Type |
P - Plastic Molded Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Bearings for Traction Motors |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
Data from Schaeffler (medias)
| Width (b) mm |
35 |
| Basic static load rating, radial (C 0r) |
222000 |
| Limiting speed (n G) |
6300 |
| Reference speed (n u03d1r) |
4500 |
| ECLASS number |
23-05-09-01 |
| ECLASS2 number |
23-05-09-01 |
Suffix description
| E |
Increased Load Capacity |
| XL |
X-Life |
| TVP2 |
Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding |
| F1 |
FAG Manufacturing And Inspection Specification For Cylindrical Roller Bearings In Traction Motors Which Considers, Among Others, The Requirements According To Din 43283 "Cylindrical Roller Bearings For Electric Traction" |
| C3 |
Internal Clearance Larger Than Normal |
