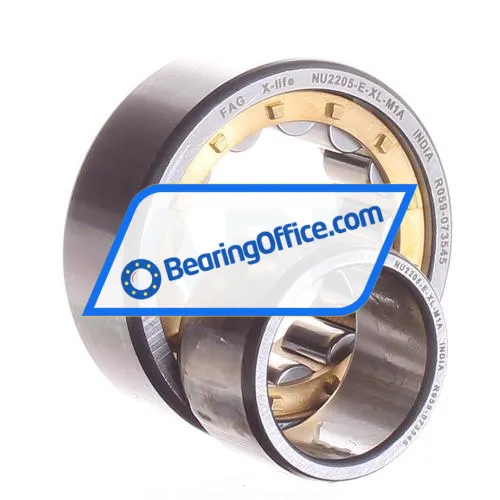

FAG NU2205-E-XL-M1A Image 2
Visual product photo and picture of the product.
Price: 53.94 $
Specifications
Weight and Dimensions
| Inner (d) MM |
25 |
| Outer (D) MM |
52 |
| Width (B) MM |
18 |
| Inner (d) Inch |
0.9843 |
| Outer (D) Inch |
2.0472 |
| Width (B) Inch |
0.7087 |
| Weight (kg) |
0.178 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
No Seal |
| Cage Type |
MA - Brass Cage, Centered on Outer Ring |
| External Modification |
No External Modification |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
Data from Schaeffler (medias)
| Width (b) mm |
18 |
| Radial Static Load Rating C0r (N) |
34500 |
| Radial Dynamic Load Rating Cr (N) |
41500 |
| Basic static load rating, radial (C 0r) |
"34500.0000" |
| Limiting speed (n G) |
25500 |
| Reference speed (n u03d1r) |
9600 |
| ECLASS number |
23-05-09-01 |
| ECLASS2 number |
23-05-09-01 |
| Medias description |
Cylindrical roller bearing NU..-E-XL-M1A, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU |
Suffix description
| E |
Increased Load Capacity |
| XL |
X-Life |
| M1A |
Solid Brass Cage, Two-Piece, Rib-Guided On Outer Ring |
