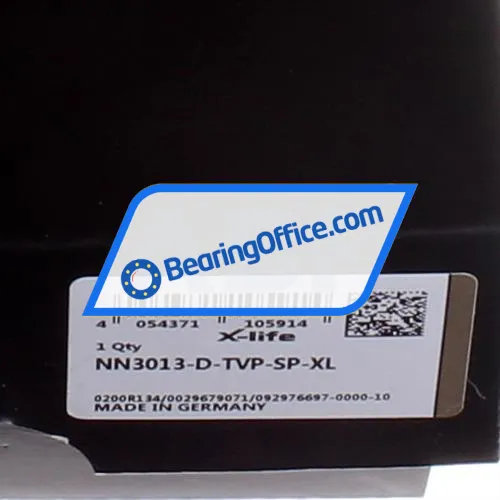

FAG NN3013-D-TVP-SP-XL Image 3
Visual product photo and picture of the product.
Price: 311.31 $
Specifications
Weight and Dimensions
| Inner (d) MM |
65 |
| Outer (D) MM |
100 |
| Width (B) MM |
26 |
| Inner (d) Inch |
2.5591 |
| Outer (D) Inch |
3.937 |
| Width (B) Inch |
1.0236 |
| Weight (kg) |
0.686 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
No Seal |
| Cage Type |
P - Plastic Molded Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
SP - Precision Higher than P4S |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
Data from Schaeffler (medias)
| Width (b) mm |
26 |
| Radial Static Load Rating C0r (N) |
116000 |
| Radial Dynamic Load Rating Cr (N) |
91000 |
| Basic static load rating, radial (C 0r) |
"116000.0000" |
| Fatigue load limit, radial (C ur) |
19000 |
| Limiting speed for grease lubrication (n G Grease) |
10800 |
| Limiting speed for oil lubrication (n G Oil) |
12700 |
| ECLASS number |
23-05-09-01 |
| ECLASS2 number |
23-05-09-01 |
| Medias description |
Cylindrical roller bearing NN..-D-TVP-SP-XL, with cage, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type NN |
Suffix description
| D |
Bearings With A Modified Internal Construction And The Suffix D Do Not Have A Lubrication Hole Or Lubrication Groove As Standard |
| TVP |
Moulded Polyamide Window-Type Cage, Rolling Element Riding |
| SP |
Super Precision Specification, Tolerance Class SP, Radial Clearance C1 |
| XL |
X-Life |
