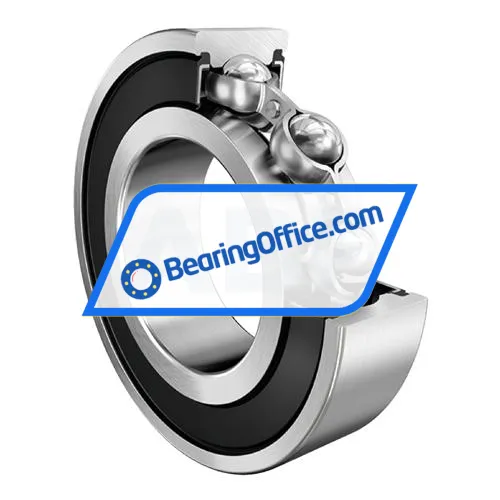

FAG 61910-2RZ Image 4
Visual product photo and picture of the product.
Price: 31.76 $
Specifications
Weight and Dimensions
| Inner (d) MM |
50 |
| Outer (D) MM |
72 |
| Width (B) MM |
12 |
| Inner (d) Inch |
1.9685 |
| Outer (D) Inch |
2.8346 |
| Width (B) Inch |
0.4724 |
| Weight (kg) |
0.14 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
2RZ - Rubber and Steel Seal |
| Cage Type |
S - Steel or Standard Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Lubrication |
Standard Lubrication |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Special Treatment |
No Special Treatment |
Data from Schaeffler (medias)
| Width (b) mm |
12 |
| Radial Static Load Rating C0r (N) |
11700 |
| Radial Dynamic Load Rating Cr (N) |
15400 |
| Basic static load rating, radial (C 0r) |
"11700.0000" |
| Limiting speed (n G) |
11400 |
| Reference speed (n u03d1r) |
8100 |
| ECLASS number |
23-05-08-01 |
| ECLASS2 number |
23-05-08-01 |
| Medias description |
Deep groove ball bearings 619..-2RZ, Main dimensions to DIN 625-1, non-contact radial seals on both sides |
Suffix description
| 2RZ |
Ball Bearing, With Low-Friction Seal At Both Sides. Seal Consists Of Sheet Steel Washer With Vulcanized Rubber |
