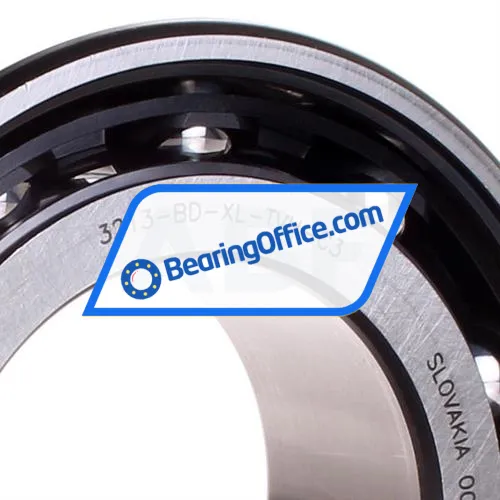

FAG 3213-BD-XL-TVH-C3 Image 2
Visual product photo and picture of the product.
Price: 117.45 $
Specifications
Weight and Dimensions
| Inner (d) MM |
65 |
| Outer (D) MM |
120 |
| Width (B) MM |
38,1 |
| Inner (d) Inch |
2.5591 |
| Outer (D) Inch |
4.7244 |
| Width (B) Inch |
1.5 |
| Weight (kg) |
1.687 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Seal |
No Seal |
| Cage Type |
P - Plastic Molded Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Standard Precision |
| Lubrication |
Standard Lubrication |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Split Inner ring / Outer ring |
Standard |
Data from Schaeffler (medias)
| Width (b) mm |
38,1 |
| Radial Static Load Rating C0r (N) |
77000 |
| Radial Dynamic Load Rating Cr (N) |
86000 |
| Basic static load rating, radial (C 0r) |
"77000.0000" |
| Limiting speed (n G) |
5700 |
| Reference speed (n u03d1r) |
6000 |
| ECLASS number |
23-05-08-03 |
| ECLASS2 number |
23-05-08-03 |
| Medias description |
Angular contact ball bearings 32..-BD, main dimensions to DIN 628-3, double row, contact angle a = 30° |
Suffix description
| BD |
Modified Internal Construction, Contact Angle u03b1=30°, Without Filling Slot |
| XL |
X-Life |
| TVH |
Moulded Polyamide Cage Snap Type, Rolling Element Riding |
| C3 |
Internal Clearance Larger Than Normal |
