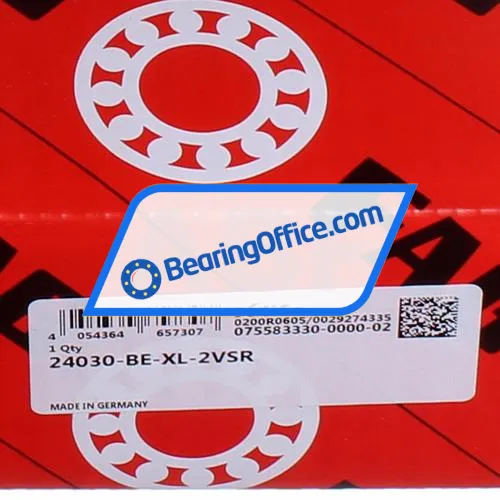

FAG 24030-BE-XL-2VSR Image 4
Visual product photo and picture of the product.
Price: 1,038.77 $
Specifications
Weight and Dimensions
| Inner (d) MM |
150 |
| Outer (D) MM |
225 |
| Width (B) MM |
75 |
| Inner (d) Inch |
5.9055 |
| Outer (D) Inch |
8.8583 |
| Width (B) Inch |
2.9528 |
| Weight (kg) |
10.5 kg
|
Product Properties
| Bore |
C - Cylindrical Bore |
| Lubrication Enhancement |
W33 - Lubrication Groove and 3 Holes |
| Seal |
2RS2 - Fluoro Rubber Seals / High Temperature |
| Cage Type |
S - Steel or Standard Cage |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Vibrating Screen Execution |
Non Vibrating Screen Execution |
Data from Schaeffler (medias)
| Width (b) mm |
75 |
| Radial Static Load Rating C0r (N) |
1090000 |
| Radial Dynamic Load Rating Cr (N) |
680000 |
| Basic static load rating, radial (C 0r) |
"1090000.0000" |
| Limiting speed (n G) |
690 |
| ECLASS number |
23-05-09-11 |
| ECLASS2 number |
23-05-09-11 |
| Medias description |
Sealed spherical roller bearings 240..-BE-2VSR, lip seals on both sides, for continuous casting machines |
Suffix description
| BE |
Maximum Capacity Design |
| XL |
X-Life |
| 2VSR |
Sheet Steel Reinforced Rubbing Seals Of Fluoro Rubber (FPM) At Both Sides Of The Bearing. Grease Fill 70 To 100% With A Plyurea High Temperature Grease. Annular Groove And Three Lubricating Holes In The Outer Ring |
