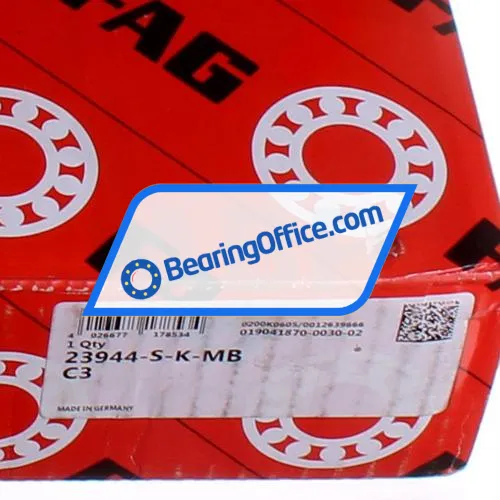

FAG 23944-S-K-MB-C3 Image 6
Visual product photo and picture of the product.
Price: 991.41 $
Specifications
Weight and Dimensions
| Inner (d) MM |
220 |
| Outer (D) MM |
300 |
| Width (B) MM |
60 |
| Inner (d) Inch |
8.6614 |
| Outer (D) Inch |
11.811 |
| Width (B) Inch |
2.3622 |
| Weight (kg) |
12.4 kg
|
Product Properties
| Bore |
K - 1:12 Tapered Bore (Standard for Most Types) |
| Lubrication Enhancement |
W33 - Lubrication Groove and 3 Holes |
| Seal |
No Seal |
| Cage Type |
M - Brass Cage |
| Radial Internal Play |
C3 Internal Play (Higher than Cn) |
| Precision |
Standard Precision |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Vibrating Screen Execution |
Non Vibrating Screen Execution |
Data from Schaeffler (medias)
| Width (b) mm |
60 |
| Radial Static Load Rating C0r (N) |
1240000 |
| Radial Dynamic Load Rating Cr (N) |
610000 |
| Basic static load rating, radial (C 0r) |
"1240000.0000" |
| Limiting speed (n G) |
2600 |
| Reference speed (n u03d1r) |
1460 |
| ECLASS number |
23-05-09-11 |
| ECLASS2 number |
23-05-09-11 |
| Medias description |
Spherical roller bearings 239..-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12 |
Suffix description
| S |
Lubrication Groove And Three Holes In Bearing Outer Ring |
| K |
Tapered Bore, Taper 1:12 |
| MB |
Solid Brass Cage, Guidance On Inner Ring |
| C3 |
Internal Clearance Larger Than Normal |
