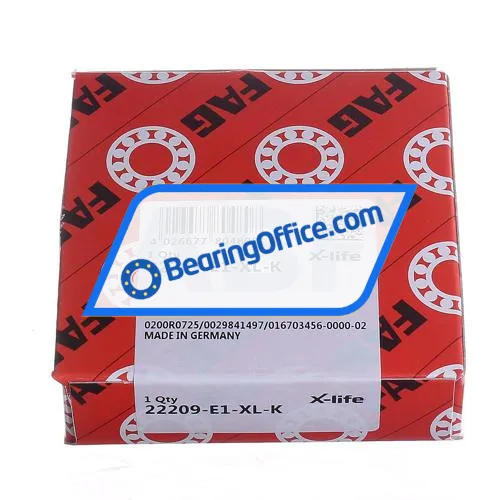

FAG 22209-E1-XL-K Image 4
Visual product photo and picture of the product.
Price: 50.03 $
Specifications
Weight and Dimensions
| Inner (d) MM |
45 |
| Outer (D) MM |
85 |
| Width (B) MM |
23 |
| Inner (d) Inch |
1.7717 |
| Outer (D) Inch |
3.3465 |
| Width (B) Inch |
0.9055 |
| Weight (kg) |
0.53 kg
|
Product Properties
| Bore |
K - 1:12 Tapered Bore (Standard for Most Types) |
| Lubrication Enhancement |
W33 - Lubrication Groove and 3 Holes |
| Seal |
No Seal |
| Cage Type |
S - Steel or Standard Cage |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Vibrating Screen Execution |
Non Vibrating Screen Execution |
Data from Schaeffler (medias)
| Width (b) mm |
23 |
| Radial Static Load Rating C0r (N) |
99000 |
| Radial Dynamic Load Rating Cr (N) |
104000 |
| Basic static load rating, radial (C 0r) |
"99000.0000" |
| Limiting speed (n G) |
10100 |
| Reference speed (n u03d1r) |
5600 |
| ECLASS number |
23-05-09-11 |
| ECLASS2 number |
23-05-09-11 |
| Medias description |
Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12 |
Suffix description
| E1 |
Increased Capacity Design |
| XL |
X-Life |
| K |
Tapered Bore, Taper 1:12 |
