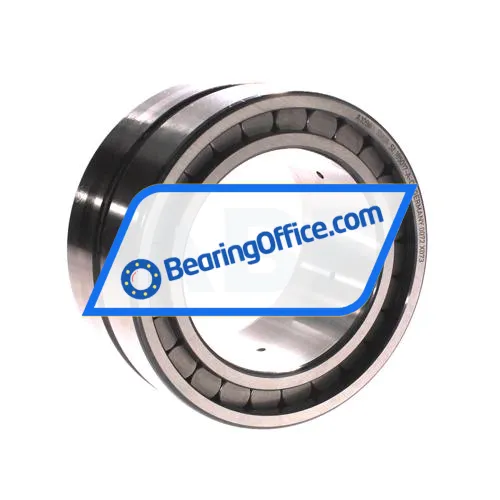

INA SL185017-A-C3

Price: 359.47 $

Specifications

Brand	INA
Item Number	SL185017-A-C3 INA
Manufacturer Part Number	0002691400030
Also known as	NNCF5017V/C3
EAN	4054365598982
Category	Cylindrical Roller Bearing Double Row

Weight and Dimensions

Inner (d) MM	85
Outer (D) MM	130
Width (B) MM	60
Inner (d) Inch	3.3465
Outer (D) Inch	5.1181
Width (B) Inch	2.3622
Weight (kg)	2.75 kg

Product Properties

Bore	C - Cylindrical Bore
Seal	No Seal
Cage Type	FC - Full Complement, No Cage
External Modification	No External Modification
Radial Internal Play	C3 Internal Play (Higher than Cn)
Precision	Standard Precision
Heat Stabilization	No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

Width (b) mm	60
Radial Static Load Rating C0r (N)	465000
Radial Dynamic Load Rating Cr (N)	300000
Basic static load rating, radial (C 0r)	"465000.0000"
Limiting speed (n G)	3050
Reference speed (n u03d1r)	2210
ECLASS number	23-05-09-01
ECLASS2 number	23-05-09-01
Medias description	Cylindrical roller bearing SL1850..-A, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18

Suffix description

The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Internal Clearance Larger Than Normal
