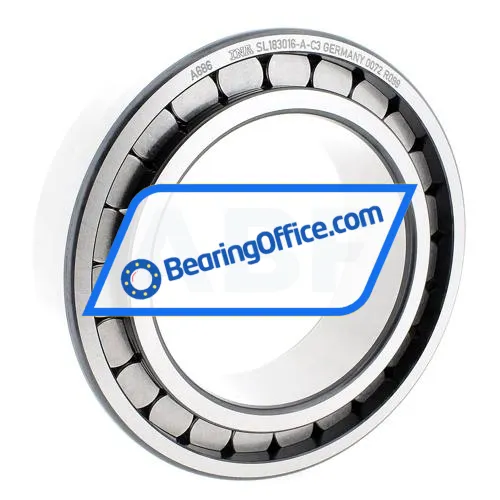

INA SL183016-A-C3

Price: 221.73 $

Specifications

Brand	INA
Item Number	SL183016-A-C3 INA
Manufacturer Part Number	0011293840030
Also known as	NCF3016V/C3
EAN	4054364123000
Category	Cylindrical Roller Bearing Single Row

Weight and Dimensions

Inner (d) MM	80
Outer (D) MM	125
Width (B) MM	34
Inner (d) Inch	3.1496
Outer (D) Inch	4.9213
Width (B) Inch	1.3386
Weight (kg)	1.5 kg

Product Properties

Bore	C - Cylindrical Bore
Seal	No Seal
Cage Type	FC - Full Complement, No Cage
External Modification	No External Modification
Radial Internal Play	C3 Internal Play (Higher than Cn)
Precision	Standard Precision
Heat Stabilization	No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

Width (b) mm	34
Radial Static Load Rating C0r (N)	220000
Radial Dynamic Load Rating Cr (N)	170000
Basic static load rating, radial (C 0r)	"220000.0000"
Limiting speed (n G)	3200
Reference speed (n u03d1r)	2470
ECLASS number	23-05-09-01
ECLASS2 number	23-05-09-01
Medias description	Cylindrical roller bearing SL18..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18

Suffix description

The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Internal Clearance Larger Than Normal
