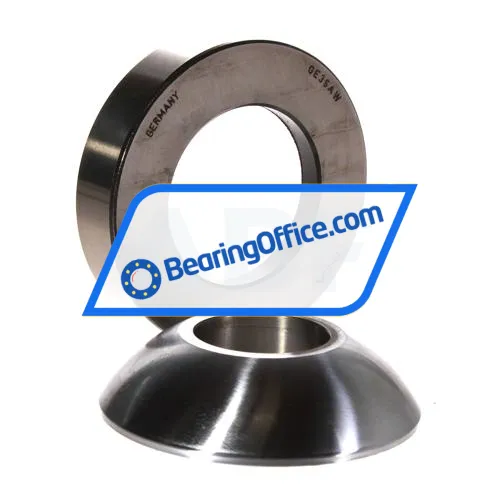

INA GE35-AW-A

Price: 219.42 $

Specifications

Brand	INA
Item Number	GE35-AW-A INA
Manufacturer Part Number	0066516230000
Also known as	GX35F
EAN	4012802547382
Category	Spherical Plain Bearing

Weight and Dimensions

Inner (d) MM	35
Outer (D) MM	90
Width (B) MM	28
Inner (d) Inch	1.378
Outer (D) Inch	3.5433
Width (B) Inch	1.1024
Weight (kg)	0.992 kg

Product Properties

Seal	No Seal
Contact Material	Steel on PTFE

Data from Schaeffler (medias)

Outside diameter bearing (D) mm	90
Height (T) mm	28
Width inner ring (B) mm	22
Axial Static Load Rating C0a (N)	1300000
Axial Dynamic Load Rating Ca (N)	778000
ECLASS number	23-05-01-06
ECLASS2 number	23-05-01-06
Medias description	Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design

Suffix description

Sliding Contact Surface Hard Chromium/Elgoglide® (Elgoglide®=PTFE (Polyetrafluoroethylene))

The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
