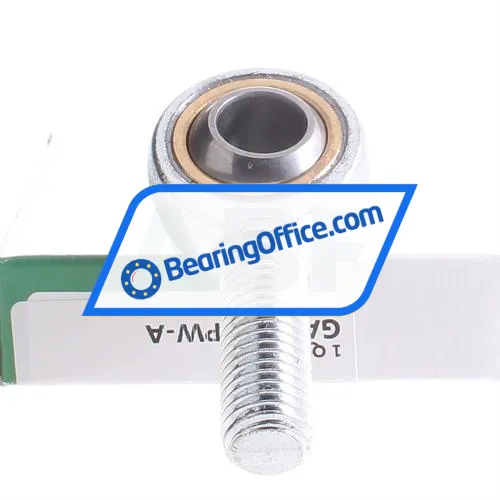

INA GAKR14-PW-A

Price: 36.39 $

Specifications

Brand	INA
Item Number	GAKR14-PW-A INA
Manufacturer Part Number	0066309010000
EAN	4012802523386
Category	Rod End

Weight and Dimensions

Inner (d) MM	14
Outer (D) MM	38
Width (B) MM	19
Inner (d) Inch	0.5512
Outer (D) Inch	1.4961
Width (B) Inch	0.748
Weight (kg)	0.131 kg

Product Properties

Seal	No Seal
Contact Material	Steel on PTFE

Data from Schaeffler (medias)

Outside diameter bearing (D) mm	28
Outer eye diameter (d 2) mm	36
Radial Static Load Rating C0r (N)	32000
Width inner ring (B) mm	19
Radial Dynamic Load Rating Cr (N)	31000
Basic static load rating, radial (C 0r)	"32000.0000"
Total length external thread rod (l 2) mm	78
ECLASS number	23-05-01-05
ECLASS2 number	23-05-01-05
Medias description	Rod end GAKR..-PW, external threads, maintenance-free

Suffix description

Sliding Contact Surface Steel/PTFE (Polyetrafluoroethylene) Bronze Film

The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
