FAG 23226-E1-XL-TVPB

FAG 23226-E1-XL-TVPB

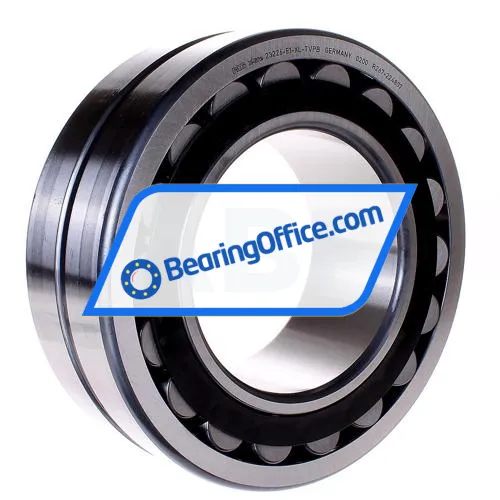

FAG 23226-E1-XL-TVPB rulman resim 1
FAG 23226-E1-XL-TVPB rulman resim 2
FAG 23226-E1-XL-TVPB rulman resim 3
FAG 23226-E1-XL-TVPB rulman resim 4
Price: 487.80 $
Specifications
Brand FAG
Item Number 23226-E1-XL-TVPB FAG
Manufacturer Part Number 0190016490000
Also known as 23226-E1-TVPB
EAN 4026677830142
Category Spherical Roller Bearing
Weight and Dimensions
Inner (d) MM 130
Outer (D) MM 230
Width (B) MM 80
Inner (d) Inch 5.1181
Outer (D) Inch 9.0551
Width (B) Inch 3.1496
Weight (kg) 13.4 kg
Product Properties
Bore C - Cylindrical Bore
Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
Seal No Seal
Cage Type P - Plastic Molded Cage
Radial Internal Play Cn Normal Internal Play
Precision Standard Precision
Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution Non Vibrating Screen Execution
Data from Schaeffler (medias)
Width (b) mm 80
Radial Static Load Rating C0r (N) 1150000
Radial Dynamic Load Rating Cr (N) 910000
Basic static load rating, radial (C 0r) "1150000.0000"
Limiting speed (n G) 2850
Reference speed (n u03d1r) 1740
ECLASS number 23-05-09-11
ECLASS2 number 23-05-09-11
Medias description Spherical roller bearings 232..-E1, main dimensions to DIN 635-2
Suffix description
E1 Increased Capacity Design
XL X-Life
TVPB Solid Window Cage Made From Glass Fibre Reinforced Polyamide, Guidance On Inner Ring
